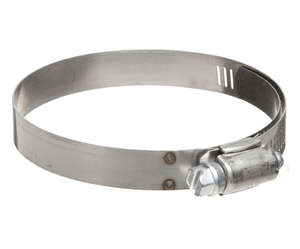

2582 Series: Lined Worm Gear Clamps

Recommended for Silicone Coolant and Heater Hoses
Please call for availability

Lined clamps are designed for use with silicone rubber and other soft hose applications. The liner protects the hose surface and prevents it from extruding or shearing through the band notches as the clamp is tightened.

For use on: Coolant Hose, Heater Hose, Marine Hose and Silicone Tubing.

Specifications:

All 300-grade stainless steel lined worm gear clamps
Hex Head: 5/16”
Band Width: 9/16”
Resists salt water and may be used in marine applications

Applications:

Recommended for silicone coolant hose, heater hose, marine, and silicone tubing.

Coolant And Heater Hose Clamping Instructions

Worm gear or constant torque type stainless steel clamps with inner liner are recommended for silicone heater and coolant hose. Initial clamp torque should be 40 inch-lbs. If re-torqueing is required, it should be limited to 20 inch-lbs. Do not use serrated, slotted, or wire type clamps.

Part Number - Clamps Lined Worm Gear	Min. Dia. (in.)	Max. Dia. (in.)	Min. Dia. (mm)	Max. Dia. (mm)	Pack Size	Weight LBS- Per 10
FLX2582-0006	0.50	0.88	13	22	10	0.5
FLX2582-0008	0.63	1.00	16	25	10	0.5
FLX2582-0010	0.75	1.06	19	27	10	0.5
FLX2582-0012	0.88	1.25	22	32	10	0.5
FLX2582-0016	1.00	1.50	26	38	10	0.5
FLX2582-0020	1.13	1.75	29	44	10	0.5
FLX2582-0024	1.25	2.00	32	51	10	0.5
FLX2582-0028	1.31	2.25	33	57	10	0.5
FLX2582-0032	1.56	2.50	40	63	10	0.5
FLX2582-0036	1.81	2.75	46	70	10	0.5
FLX2582-0040	2.06	3.00	52	76	10	0.5
FLX2582-0044	2.31	3.25	59	82	10	0.5
FLX2582-0048	2.56	3.50	65	89	10	0.5
FLX2582-0052	2.81	3.75	72	95	10	0.5
FLX2582-0056	3.06	4.00	78	101	10	0.5
FLX2582-0060	3.31	4.25	84	108	10	0.5

*Specifications for reference only.
