4000 Series: Charge Air Connector Hose And Clamp Kits

4000 Series: Hose And Clamp Kits

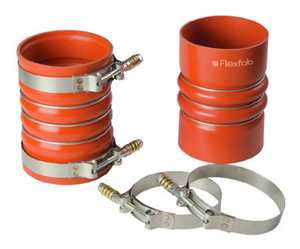

Flexfab 4000 Series Clamp Kits provide a CAC Hose and 2 Spring-Loaded T-Bolt Clamps with each kit. Hoses provided in these kits are compatible with both the hot or cold side of the Charge-Air Cooler System.


Charge Air Connector Hose

Specifications:

  • 4-Ply Silicone Coated Meta-Aramid Fabric with Stainless Steel Pressure Retention Rings
  • Temperature range is -65°F (-54°C) to +500°F (+260°C)

Spring-Loaded T-Bolt Clamps

Specifications:

  • All stainless steel Spring-Loaded T-bolt clamps
  • Resists salt water and may be used in marine applications
Part NumberHose and Clamp Provided in KitInside Diameter
Inch|MM
Outside Diameter
Inch|MM
Overall Length InchesConvolutes (Humps)Stainless Steel RingsMax Operating Pressure - PSI
KIT4001D4070-00014.001024.231076.002370
FLX2588-04064.061034.38111N/AN/AN/AN/A
KIT4002D4070-00024.001024.231076.002370
FLX2588-04064.061034.38111N/AN/AN/AN/A
KIT4003D7727-00014.001024.231078.002350
FLX2588-04064.061034.38111N/AN/AN/AN/A
KIT4004D4073-00013.50893.73956.002370
FLX2588-03563.56913.8898N/AN/AN/AN/A
KIT4005D4074-00013.00763.23826.002370
FLX2588-03063.06783.3886N/AN/AN/AN/A

*Specifications for reference only. Specific test data available on request.
