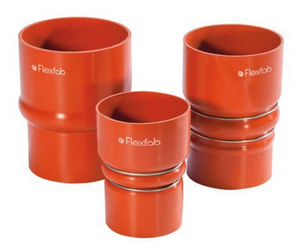

Charge Air Connector (CAC) Convoluted Reducers

Convoluted Reducers

Can be used on both hot side and cold side of the CAC system

Construction:

  • 4-Ply Silicone Coated Meta-Aramid Fabric with Stainless Steel Pressure Retention Rings where noted

Specifications:

  • Temperature range is -65°F (-54°C) to +500°F (+260°C)
  • Wall thickness is .092/.132

Applications:

  • Used on diesel truck engines to deliver pressurized intake air to the charge air intercooler and intake manifold
Part NumberInside Diameter
Inch|MM
Outside Diameter
Inch|MM
Overall Length InchesConvolutes (Humps)Stainless Steel RingsMax Operating Pressure - PSIWeight LBSClamp
78682.50/3.0064/762.73/3.2369/824.001None400.52583-0250/2583-0300 2584-0312/2584-0362
77263.00/3.5076/893.23/3.7382/955.0012550.52583-0300/2583-0350 2584-0362/2584-0412
77663.00/4.0076/1023.23/4.2382/1076.3012500.52583-0300/2583-0400 2584-0362/2584-0462
78803.50/4.0089/1023.73/4.2395/1076.0022500.52583-0350/2583-0400 2584-0412/2584-0462
77114.00/4.50102/1144.23/4.73107/1206.001None300.52583-0400/2583-0450 2584-0462/2584-0512
78664.00/4.50102/1144.23/4.73107/1207.0023450.62583-0400/2583-0450 2584-0462/2584-0512

*Specifications for reference only. Specific test data available on request
