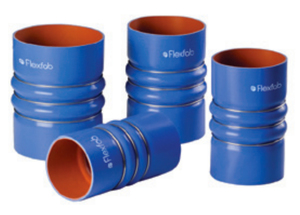

Charge Air Connector (CAC) – Cold Side
• 3 Ply Silicone Coated Polyester Fabric With Stainless Steel Pressure Retention Rings
Specifications:
• Temperature range is -65°F (-54°C) to +350°F (+177°C)
• Wall thickness is .084/.130
Applications:
• Used on diesel truck engines to deliver pressurized intake air to the charge air intercooler and intake manifold
Charge Air Connector (CAC) – Cold Side
| Part Number | Inside Diameter Inch MM | Outside Diameter Inch MM | Overall Length Inches | Convolutes (Humps) | Stainless Steel Rings | Max Operating Pressure - PSI | Weight LBS | Clamp | ||
| 7758-0001 | 3.00 | 76 | 3.23 | 82 | 6.00 | 2 | 3 | 60 | 0.5 | 2583-0300 or 2584-0362 |
| 7753-0001 | 3.50 | 89 | 3.73 | 95 | 6.00 | 2 | 3 | 55 | 0.5 | 2583-0350 or 2584-0412 |
| 7755-0002 | 4.00 | 102 | 4.23 | 107 | 6.00 | 2 | 3 | 50 | 0.5 | 2583-0400 or 2584-0462 |
| 7759-0001 | 4.50 | 114 | 4.73 | 120 | 6.00 | 2 | 3 | 45 | 0.5 | 2583-0450 or 2584-0512 |
*Specifications for reference only. Specific test data available on request.
Available in the following hose ID sizes:
ID Fractional (Inch) | 3” | 3-1/2” | 4” | 4-1/2” |
ID Decimal (Inch) | 3.00” | 3.50” | 4.00” | 4.50” |
ID Millimeter | 76mm | 89mm | 102mm | 114mm |
Standard Sizes (ID x OAL) | 3.00” x 6.00” | 3.50” x 6.00” | 4.00” x 6.00” | 4.50” x 6.00” |
*Additional & Custom Sizes Available!
